Level monitoring relay 411-RND20 series

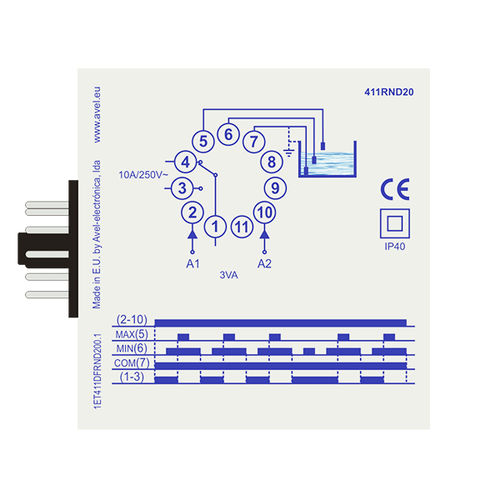

Filling control for tanks. • Plastic box with an 11 pin circular plug. • Water existence in the tank, indicated by a green LED. • Output relay on (1-3), indicated by a red LED. • Power supply on (2-10), indicated by a yellow LED. • Supply rated voltage, indicated on the front of the relay. • Wiring scheme indicated on the side of the relay. • Switching diagram indicated on the side of the relay. Technical characterístics • Detection circuits sensitivity range: 0 a 80 Kohm • Supply voltages: AC: 24V; 230V; 400V (other voltages on request) • Supply tolerance: -15%…+10% • Power consumption: < 3VADimensões: (W) 35mm x (H) 79mm x (P) 77mm • Output relay: • Max. power rating: 2500VA (10A/250V) • Max. switching voltage: 400VAC
