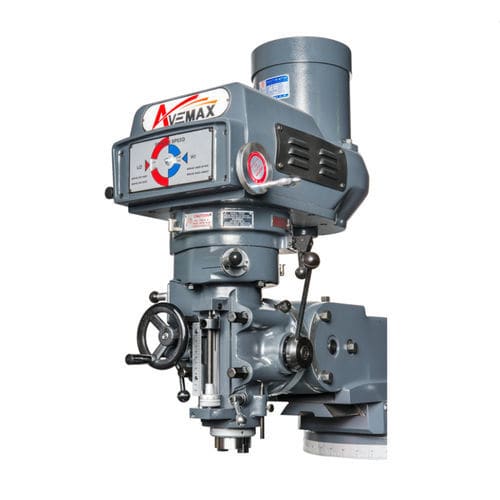

3-axis milling machine 4KS

verticalautomaticvariable speed

Spindle material made from SCM440 Cr-Mo steel alloy with tempering treatment. Centralized one shot lubrication system for ways, nuts and leadscrews of axes. Precise angular contact spindle bearing. 8 speeds step-pulley drive (16 speeds is optional). Unique design on Hi-Low gear speed commutation, bearings support on both sides of spindle pulley. Adjustable brake handle increases the life of brake shoe. 4KV Spindle material made from SCM440 Cr-Mo steel alloy with tempering treatment. Centralized one shot lubrication system for ways, nuts and leadscrews of axes. Precise angular contact spindle bearing. Variable speed drive up to 4500 rpm/60Hz 3750rpm/50Hz. Patented special copper alloy SAM214 for vari-disc keys with precise ground and grease lubrication system. Bearing support at the end of motor shaft. Double sided vari-disc belt provides lower noise level. Motor shaft material made from steel alloy, diameter 28mm.
