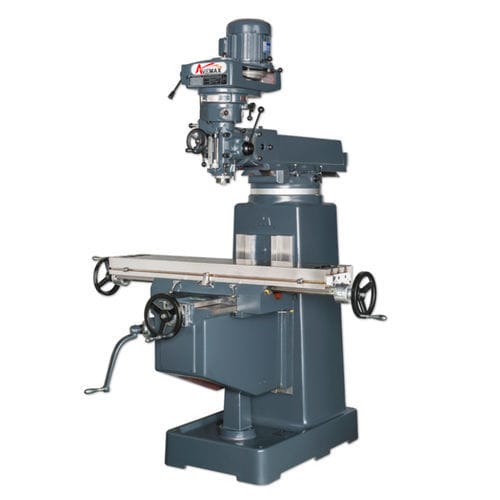

3-axis milling machine 450TM

verticalvariable speed

Spindle material made from SCM440 Cr-Mo steel alloy with tempering treatment. Centralized one shot lubrication system for ways, nuts and leadscrews. Precise angular contact spindle bearing. 8 speeds step-pulley drive (16 speeds is optional). Unique design on Hi-Low gear speed commutation, bearings support on both sides of spindle pulley. Adjustable brake handle increases the life of brake shoe. Lifting screw diameter 38mm. Longer saddle (650mm) support to the table provides high accuracy and rigid machining. Turcite-B coated on X Y ways. Square way design on Y. 450VS Spindle material made from SCM440 Cr-Mo steel alloy with tempering treatment. Centralized one shot lubrication system for ways, nuts and leadscrews. Precise angular contact spindle bearing. Variable speed drive up to 4500 rpm/60Hz 3750rpm/50Hz Unique design on Hi-Low gear speed commutation, bearings support on both sides of spindle pulley. Patented special copper alloy SAM214 for vari-disc keys with precise ground and grease lubrication groove design to prevent overheating. Bearing support to the end of motor shaft. Double sided vari- disc belt provides lower noise level. Motor shaft material made from SAM425 Cr-Mo steel alloy, diameter 28mm Lifting screw diameter 38mm Longer saddle (650mm) support to the table provides high accuracy and rigid machining. Turcite-B coated on X Y ways. Square way design on Y.
