3-axis CNC milling machine CV-400
verticalrigidprecision

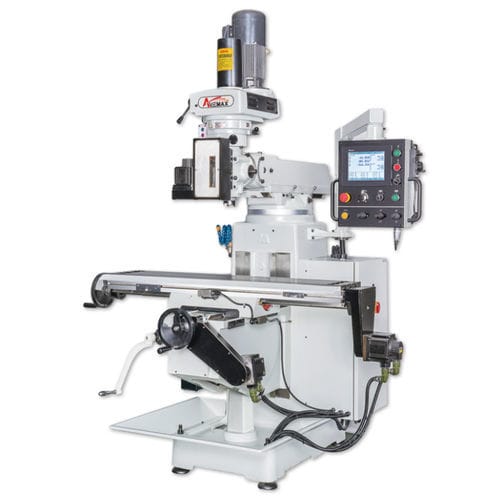

3-axis CNC milling machine - CV-400 - AVEMAX - vertical / rigid / precision
3-axis CNC milling machine - CV-400 - AVEMAX - vertical / rigid / precision
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Other characteristics
rigid, precision, with turret
X travel

830 mm
(32.68 in)

Y travel

380 mm
(14.96 in)

Z travel

127 mm
(5 in)

Rotational speed

3,800 rpm, 4,500 rpm
(23,876 rad.min-1, 28,274 rad.min-1)

Power

3 ch
(3 hp)

Work feed X-axis

3,000 mm/min
(2 in/s)

Work feed Y-axis

3,000 mm/min
(2 in/s)

Weight

1,400 kg
(3,086.47 lb)

Overall width

1,900 mm
(74.8 in)

Overall height

2,120 mm
(83.5 in)

Description

Spindle material is SCM415 full hardened through carbonizing heat treatment NST#30/R8 spindle with variable speed motor (inverter motor option is available). Spindle quill drive box is transmitted by ballscrew for better precision. Essential castings are made of high grade of Meehanite cast iron, which has been stressed and relieved to provide a rigid machine structure. Standard with 10” X 54” table with hardened and ground. Table T-slot is precision ground to exact tolerance. Precision ballscrews are equipped on X&Y axes. X and Y slideways and gibs are coated with Turcite-B to provide smooth and wear resistant surface. 1:2 ratio timing belt pulleys on XY axes to increase drive torque.
