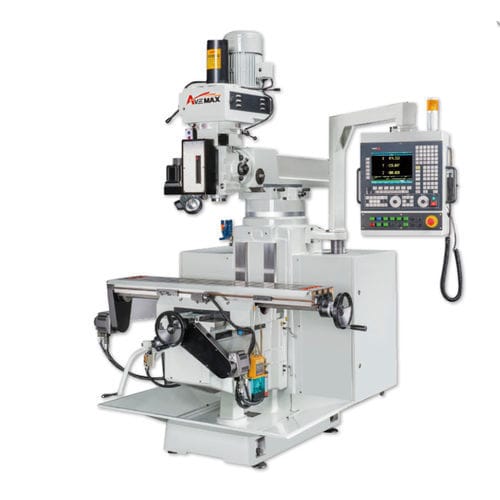

3-axis CNC milling machine CV-520verticalrigidprecision
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Other characteristics
- rigid, precision, with turret
- X travel
830 mm
(32.68 in)- Y travel
405 mm
(15.94 in)- Z travel
127 mm
(5 in)- Rotational speed
3,800 rpm, 4,500 rpm
(23,876 rad.min-1, 28,274 rad.min-1)- Power
5 ch
(5 hp)- Work feed X-axis
3,000 mm/min
(2 in/s)- Work feed Y-axis
3,000 mm/min
(2 in/s)- Weight
1,800 kg
(3,968.32 lb)- Overall width
1,900 mm
(74.8 in)- Overall height
2,375 mm
(93.5 in)
Description
Spindle material is SCM415 full hardened through carbonizing heat treatment.
Spindle quill drive box is transmitted by ballscrew for better precision.
Essential castings are made of high grade of Meehanite cast iron, which has been stressed, relieved to provide a rigid machine structure.
Standard with 10” X 54” table with hardened and ground.
Table T-slot is precision ground to exact tolerance.
Box way design on Y and Z axes leads to better rigidity.
Lifting screw diameter 38mm assures the stability while machining.
Precision ballscrews are equipped on X&Y axes.
X&Y slideways and gibs are coated with Turcite-B to provide smooth and wear resistant surface.
1:2 ratio timing belt pulleys on XY axes to increase drive torque.
