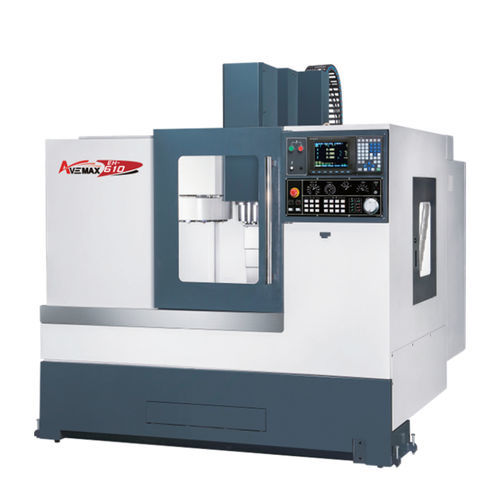

3-axis CNC machining center EH-610verticalBT 40precision
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Other characteristics
- precision
- X travel
610 mm
(24.02 in)- Y travel
380 mm
(14.96 in)- Z travel
510 mm
(20.08 in)- Rotational speed
10,000 rpm, 12,000 rpm, 15,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)- Power
3.5 kW, 5.5 kW
(4.76 hp, 7.48 hp)- Table load capacity
350 kg
(772 lb)- Tool weight (max)
6 kg
(13.2 lb)- Positioning accuracy
0.008 mm
(0.00031 in)- Repeatability
0.005 mm
(0.0002 in)- Weight
2,600 kg
(5,732.02 lb)- Overall length
1,800 mm
(70.9 in)- Overall width
1,720 mm
(67.7 in)- Overall height
1,987 mm
(78.2 in)
Description
MEEHANITE licensed castings are annealed and stress relieved to ensure maximum precision and vibration absorption.
Hardened and ground C5 grade ballscrews pre-tensioned to minimize backlash, providing high precision movement and reducing heat deformation on all axes.
Telescopic steel way covers on three axes to protect ways and ballscrews from chips and coolant.
Box way design on X/Y/Z axis is hardened and ground.
High grade TURCITE-B is coated and with precision hand scrapping, giving maximum wear resistance.
