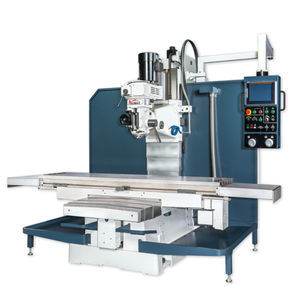

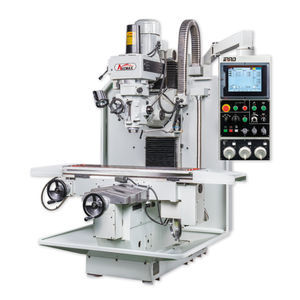

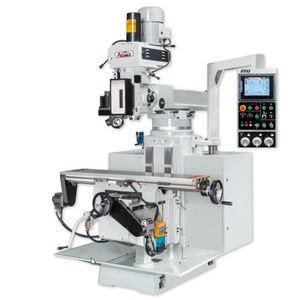

3-axis CNC milling machine iV-400

verticalrigidprecision

Spindle material is SCM415 full hardened through carbonizing heat treatment. NST#30/R8 spindle with 3HP variable speed motor (inverter motor option is available). Spindle quill drive box is transmitted by ballscrew for better precision. Essential castings are made of high grade of Meehanite cast iron, which has been stressed and relieved to provide a rigid machine structure. Standard with 10” X 54” table with hardened and ground. Table T-slot is precision ground to exact tolerance. Precision ballscrews are equipped on X&Y axes. X and Y slideways and gibs are coated with Turcite-B to provide smooth and wear resistant surface. 1:2 ratio timing belt pulleys on XY axes to increase drive torque. Features Intelligently integrates the control, machine and person. Optimized HMI + PLC + Motion + COMM. iPRO system enables you to program conventional machining operations right at your machine in an easy programming way. iPRO system was designed for users where manual and automated operation are both useful and needed. Built in functions: parameter memory, visual communication, USB connectivity, coaching program and coordinate adjustment record. Powerful, easy and user-friendly. Great for your daily milling work. DRO mode Built in DRO mode provides DRO functions for your milling work. With this function, you are no longer have to spend extra money on DRO equipment for your machine.
