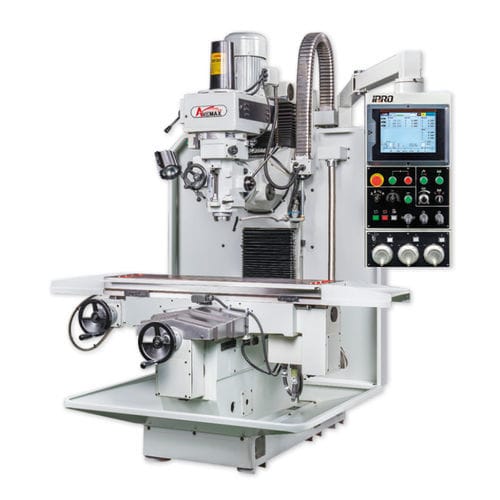

3-axis CNC milling machine iB-800

verticalrigidvariable-speed

NST#40 spindle with 5HP inverter motor. Spindle material is SCM415 full hardened through carbonizing heat treatment. Essential castings are made of high grade of Meehanite cast iron, which has been stressed, relieved to provide a rigid machine structure. Standard with 10” X 54” table with hardened and ground. Table T-slot is precise ground for precise tolerance. Precise ballscrews are equipped on X&Y axes. X Y slideways and gibs are coated with Turcite-B to provide smooth and wear resistant surface. XYZ slideways are hardened and ground for wear resistance and excellent longevity. 1:2 ratio timing belt pulleys on XY axes to increase drive torque. Features Intelligently integrates the control, machine and person. Optimized HMI + PLC + Motion + COMM. iPRO system enables you to program conventional machining operations right at your machine in an easy programming way. iPRO system was designed for users where manual and automated operation are both useful and needed. Built in functions: parameter memory, visual communication, USB connectivity, coaching program and coordinate adjustment record. Powerful, easy and user-friendly. Great for your daily milling work. DRO mode Built in DRO mode provides DRO functions for your milling work. With this function, you are no longer have to spend extra money on DRO equipment for your machine. Programming Program the iPRO by making simple selections and inputting parameters in numbers. Program Storage An internal drive lets you save hundreds of typical programs. A USB port on iPRO is available to plug in a storage device for backing up programs and moving programs between iPRO and computers.
