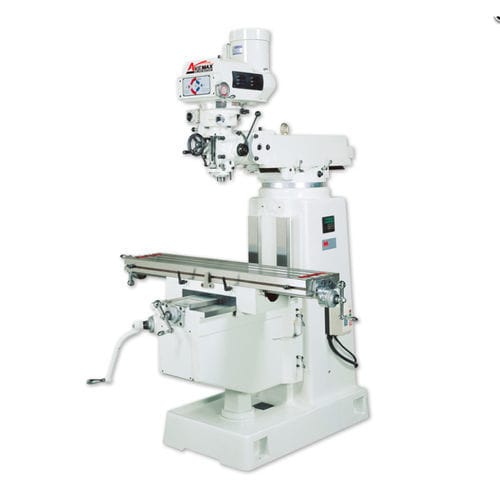

3-axis milling machine SP-520 series verticalhigh-precisiongrinding
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Other characteristics
- high-precision
- Associated function
- grinding
- X travel
775 mm, 870 mm
(30.51 in, 34.25 in)- Y travel
410 mm
(16.14 in)- Z travel
450 mm
(17.72 in)- Power
5 ch
(5 hp)
Description
10”X 54” table
NST#40 spindle material SAE4115 (SCM415) full piece by hardened and ground
Turcite-B on X Y ways, slidways and X Y gibs
Hardened and ground on X Y Z slidways and table
Electroless nickel-phosphorus plating process on X and Y leadscrews
Grinding on table T-slot
Square ways on Y and column ways
Patented FA381 keys are used for vari-speed head
Diameter 1 1/2” (38mm) lifting screw
Lifting motor and electric box
Strict with hand scraping for high precise accuracy.
