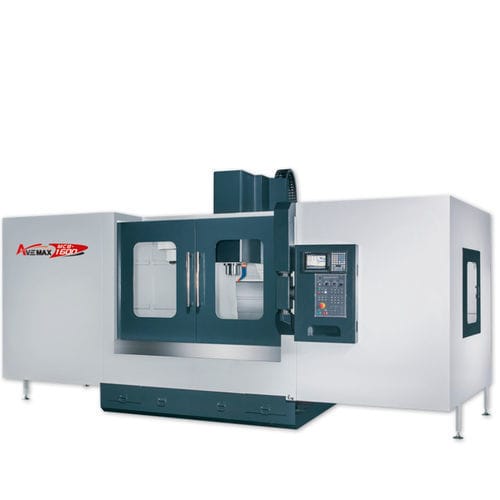

3-axis CNC machining center MCB-1600

verticalBT 40cutting

VMC rigid headstock moves directly on column without extra bracket to ensure heavy cutting accuracy. BT40 spindle is fully balanced for low chatter and high performance machining. All essential castings are made of high grade of Meehanite cast iron, which has been stressed and relieved to provide a rigid machine structure. All three axes are driven by high precision ballscrews with double nuts which leads less play and backlash. Dovetail design on X, box way design on YZ. All slideways have been hardened and ground for longer longevity. It also provides high rigidity for heavy and discontinuously cutting. All contacting surfaces are precisely hand scrapped. YZ slideways are protected by high grade steel covers. 1:2 ratio timing belt pulleys on XYZ axes to increase drive torque and save the cost of axes motors.
