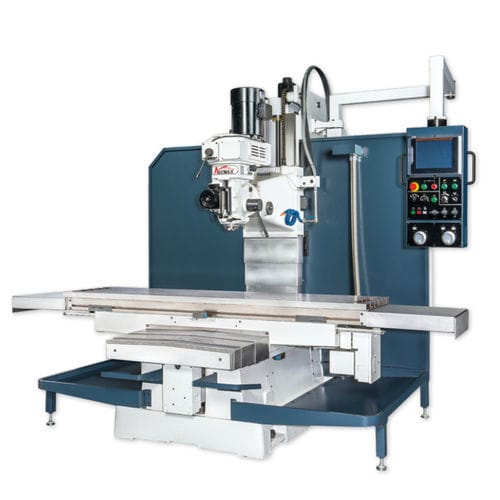

3-axis CNC milling machine iB-1600

verticalhigh-precision

High grade casting is annealed and stress-released, providing high rigidity and wear resistance Hardened and ground double-nut ballscrews on 3 axes, providing high precision movement, and reducing heat deformation. XYZ slideways, table and T-slot are hardened and ground 3 ways are coated with turcite-B Dovetail on X slideways, box ways on Y and Z 1:2 ratio timing belt boxes on XYZ to increase drive torque and save cost for axes motors XYZ axes are driven by servo motor, standard with pendent control box, and individual buttons for each function allows operator to work with ease YZ steel way covers protecting slidways and ballscrews from dust and coolant Features Intelligently integrates the control, machine and person. Optimized HMI + PLC + Motion + COMM. iPRO system enables you to program conventional machining operations right at your machine in an easy programming way. iPRO system was designed for users where manual and automated operation are both useful and needed. Built in functions: parameter memory, visual communication, USB connectivity, coaching program and coordinate adjustment record. Powerful, easy and user-friendly. Great for your daily milling work. DRO mode Built in DRO mode provides DRO functions for your milling work. With this function, you are no longer have to spend extra money on DRO equipment for your machine. Programming Program the iPRO by making simple selections and inputting parameters in numbers. Program Storage An internal drive lets you save hundreds of typical programs. A USB port on iPRO is available to plug in a storage device for backing up programs and moving programs between iPRO and computers.
