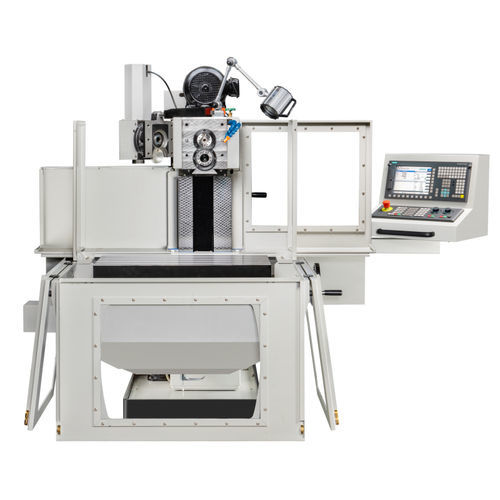

Universal CNC milling machine CVH-5003-axis
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- universal
- X travel
500 mm
(19.69 in)- Y travel
350 mm
(13.78 in)- Z travel
381 mm
(15 in)- Rotational speed
65 rpm, 510 rpm, 515 rpm, 4,020 rpm
(408 rad.min-1, 3,204 rad.min-1, 3,236 rad.min-1, 25,258 rad.min-1)- Power
5 kW
(6.8 hp)- Work feed X-axis
5,000 mm/min
(3 in/s)- Work feed Y-axis
5,000 mm/min
(3 in/s)- Table load capacity
200 kg
(441 lb)- Weight
1,300 kg
(2,866.01 lb)- Overall width
1,955 mm
(77 in)- Overall height
1,830 mm
(72 in)
Description
Spindle taper SK40 (DIN69872).
With Hi-Low speed, max speed
Precise ballscrews on XYZ.
Manual and CNC mode change by button.
Standard with Siemens 828D controller.
