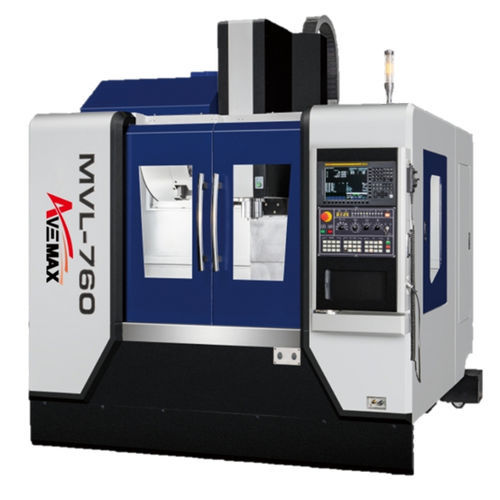

3-axis CNC machining center MVL-760

verticalBT 4024 tools

Linear guideways provide fast and smooth movements to ensure excellent machining results and high accuracy. Axis motors are directly coupled with ball screws, featuring highly efficient motion control, fast response, and low noise. Every contact sliding surface is applied with Turcite-B that maximizes the durability of slideways and features optimum damping coefficient. The mating surfaces are precision hand scraped to increase the flatness and improve geometric accuracy of the whole assembly. Telescopic steel way covers on three axes to protect ways and ballscrews from chips and coolant. TABLE Table size - 915 x 400mm T-slot of table (size x Q’ty) - 14 x 3mm TRAVEL Spindle nose to table surface - 102~610mm FEED RATE Cutting feedrate X/Y/Z - 10/10/10M/min TOOL MAGAZINE Max. tool diameter - Full: 80mm / Next empty: 150mm Max. tool length - 300mm OTHER ITEMS Tank capacity - 220L Chip conveyor - Screw type Lubrication system/ oil tank capacity - Volumetric/4.09L Air source - 0.6Mpa Power requirement - 20KVA
