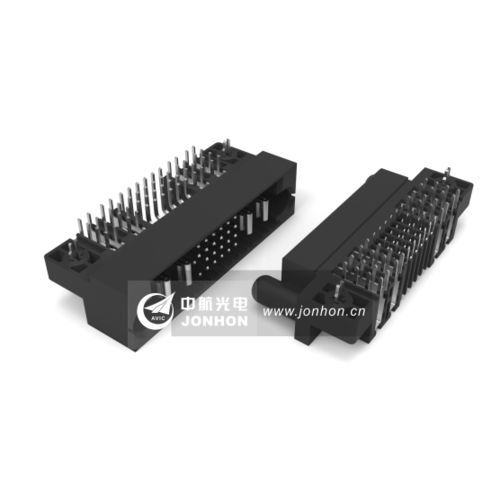

Electrical power supply connector DP2 series

SocketPCBpower

RRU, AAU, BBU power transmission between PCB. Blind-mating: the leading pin of plug inserts into the socket of receptacle, which makes the precise blind-mating; Pitch: power contact pitch 5.08mm, 6.35mm, 7.62mm;signal contact pitch 2.54mm; Support various DC, AC and signal configurations and could add configuration by different needs; Products comply with RoHS requirements, UL, CUL file NO.: E203642，TUV file NO.:R50178384. Insulation resistance - between power contacts ≥10000MΩ (normal temp) between signal contacts ≥500MΩ Contact resistance - power contact ≤0.003Ω; signal contact ≤0.02Ω Endurance (Cycle) - 200
