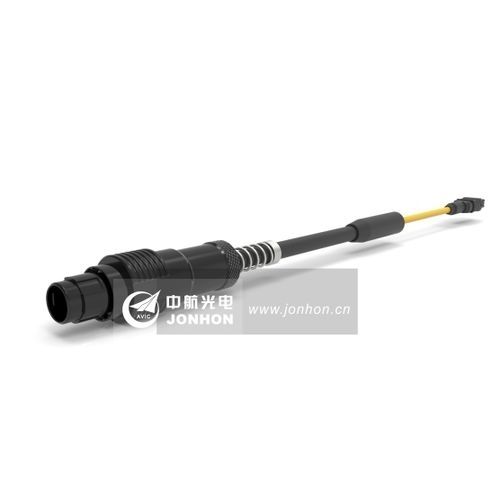

Electrical power supply connector PMP seriesLCpush-pulltransmission
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- LC
- Connection type
- push-pull
- Product applications
- transmission, cable, window
- Domain
- outdoor, optical
- Protection class
- IP67
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
Used in the optical transmission between outdoor RRU (AAU) and BBU, with two types such as maintenance window and outdoor water-proof connector.
Used in 5G optical signal long-distance transmission of tele-com base station;
With inner MT ferrule for 2 ~ 12 cores transmission;
Push-pull connection, quick operation;
Low loss and good bend-proof function;
Good weather-proof, optical cable meet UV resistance standard in UL1581;
IP67 after mating;
Comply with RoHS requirements.
Insertion Loss -
single-mode：PMP/PAMP side≤0.7dB；moving end (like LC)≤0.3dB
multi-mode：PMP/PAMP side≤0.7dB；moving end(like LC)≤0.2dB
Return Loss - single-mode≥50dB
Pull Force - 200N
IP degree(after mating) - IP67
