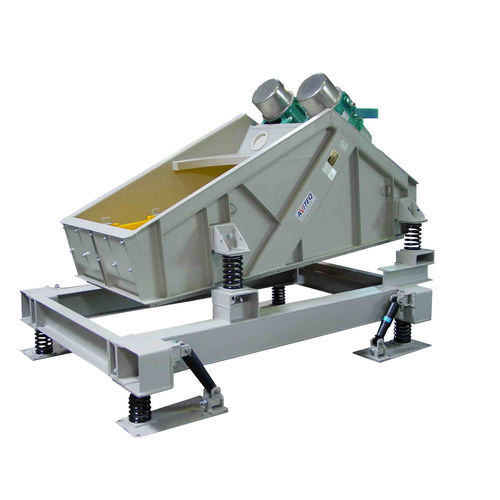

Drainage screener

linear vibratingfor plastic pelletsfor liquids

AViTEQ Dewatering screens are designed as linear vibrating devises for drainage of sand, plastic granules, kieserite, limestone, etc., even to depart insoluble contaminants from wash water or carrier liquids. Advantages & benefits • double, specific screening performance of linear vibration with respect to flat screening • easy replacement of screen decks • low height Construction The design of the screen, depending on the requirements, in single or multi-deck construction. Possible drives are magnetic vibrators, unbalanced motors, exciters and circular vibrators. Dewatering screens are generally designed with top-mounted drives. Selection The sizing depends on: • the material to be drained • properties of the bulk material, such as bulk density, grain shape, size, size distinction Key figures The dimensions are determined by the task. Previously executed dimensions: • length: up to 5,000 mm • width: up to 2,800 mm • throughput: up to 200 m³/h • drives: magnetic vibrator, unbalanced motor, exciter, circular
