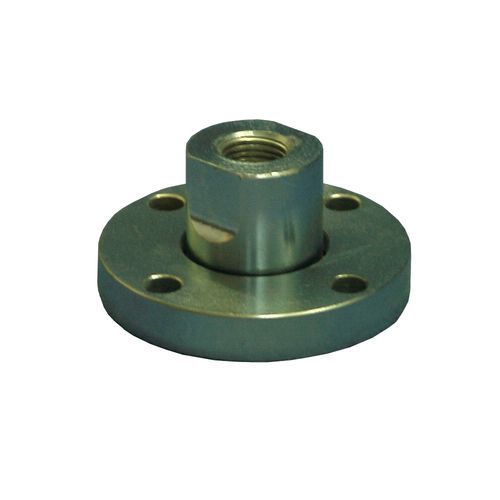

Rigid coupling Type 5133
for acruator rodstainless steelzinc-plated steel

Rigid coupling - Type 5133 - AVM AUTOMATION - for acruator rod / stainless steel / zinc-plated steel
Rigid coupling - Type 5133 - AVM AUTOMATION - for acruator rod / stainless steel / zinc-plated steel
Add to favorites
Compare this product


Characteristics

Type
rigid
Product applications
for acruator rod
Construction
stainless steel, zinc-plated steel, with floating shaft
Other characteristics
compensating
Installation system
flange

Description

Floating rod coupling, alignment compensator > for pneumatic, electric or hydraulic cylinders Zinc steel or stainless steel 304L With axial play or adjustable play For rod threading M6 M8 M10x1,25 M12x1,25 M14x1,5 M16x1,5 M16x2 M18x1,5 M20x1,5 M27x2 Floating coupling, alignment compensator, for cylinder rod These rod couplings make it possible to connect the rod of a pneumatic cylinder (or electric) to any part to be set in motion while avoiding any stress on the rod. They are available in 2 versions: . with axial play ( The version with axial play allows a radial compensation of the axis of the cylinder rod, it’s for usual pneumatic applications => The version with adjustable play allows the axial play to be:Rod coupling with adjustable axial play – reduced by screwing the cylinder rod against the internal pin and then unscrewing it slightly (then lock with the cylinder rod nut against the coupling) – removed by screwing the cylinder rod against the internal part (with tightening), then blocking with the rod nut of the cylinder against the coupling; it is then necessary to make sure that the coupling and the rod of the cylinder are well aligned before blocking, operate when the rod of the cylinder is as much as possible in the retracted position and without constraint on its internal bearing. In this case, to have no mechanical stress on the rod of the cylinder, the guide on ball bushings is recommended and the bending must be weak. Furthermore, the admissible axial force by pushing is reduced (see the values ​​in the documentation).
