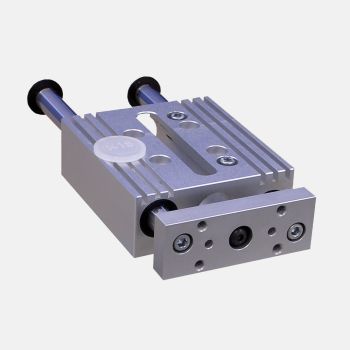

Ball bearing linear guide Type LB - LW

stainless steelfor pneumatic cylinders

Guides, delivered without motor, allows to realize systems with 1, 2 or 3 axes For LinMot® motors P01-23, P01-37, P01-48 Stainless steel version for *-SSC motors Presentation of the range of guides for LinMot® motors These guides are intended exclusively for cylindrical linear motors of the LinMot® brand and are broken down into 5 families: • LB modules for pick and place manipulators • LE modules • Gantry LR • LH guide units comparable to guide units for pneumatic cylinders • Guides in stainless steel LX and LW for motors * -SSC Special features of the LE and LB modules On LE modules, for vertical applications, it’s possible to have a mechanical-pneumatic brake or a LinMot MagSpring. The LB23 module is equipped with pneumatic balancing (anti-fall in the event of a power outage but also for high speed by eliminating the impact of gravity).
