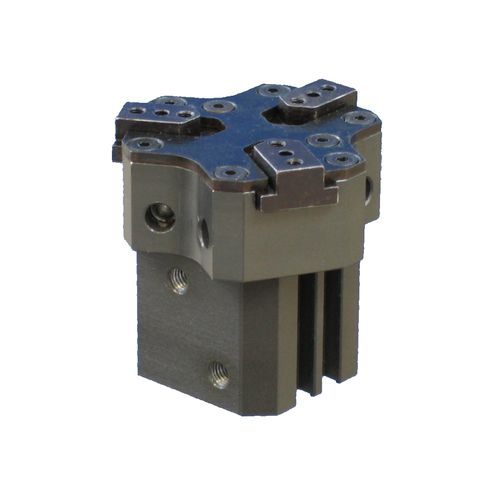

3 fingers gripper Type 24

pneumaticparallel3-jaw

Handling pneumatic gripper with parallel clamping with 3 concentric fingers. The guide is prismatic and mechanism is completely protected Option : Magnetic detection (T-grooves) Benefits of 3-finger parallel tightening Although most handling applications are using parallel grippers with 2 fingers, because even in the case of cylindrical parts, V-shaped jaws allow a good grip. The use of a gripper with 3 fingers is preferred in 2 case: – refocusing of the part along 2 axes during tightening – stability of a long cylindrical part clamped by its end In the particular case of screwing, we have a range of 3-jaw grippers specifically dedicated to screwing: Type 2913 grippers. Reliability and robustness of Type 24 parallel grippers With a hard anodized body and cylinder, prismatic steel guide, fully protected mechanism, these pneumatic parallel grippers are robust and reliable. The positions are detected by magnetic detectors (delivered separately) thanks to 2 T-grooves on the upper face of the cylinder. This groove is compatible with many detectors on the market to facilitate maintenance. Mounting interfaces allow them to be integrated into a pneumatic handling assembly.
