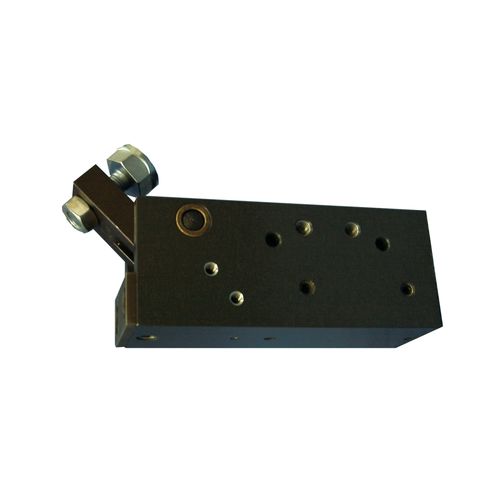

Stop unit for conveyor 3593003

Pneumatic retractable stop Locking by toggle joint action Adjustable stop screw Options : Detection of positions Other tapping in the finger Operating principle of the retractable stop This retractable stop is drived by a double-acting pneumatic cylinder. It is retracted by a 90 ° rotation of the finger. When it is engaged to stop the moving element, it is mechanically locked by a toggle joint action. The retractable finger supports an impact force of 1280 N or less, it is generally necessary to provide damping at the point of contact (elastic or hydraulic depending on the application). Detection by 2 inductive Ø8 detectors is optional. Using of the retractable pneumatic stop There are 3 common applications for this retractable stop: • Create an intermediate position for a manipulator or a linear pneumatic gantry • Create a conveyor stop • Referencing a product on a workstation For an intermediate position of the pneumatic manipulator, a hydraulic shock absorber must be placed opposite the stop screw. For conveyor stops, an elastic absorber may be sufficient.
