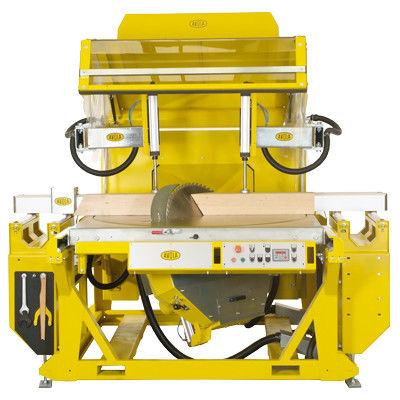

Circular saw GAMA 65 V

woodtabletopwith tilting blade

Equipment / scope of supply •Cutting heights 90° / 245 mm - 45° / 164 mm - 30° / 113 mm •Machine table with lateral movement approx. 400 mm with pneumatic brake system •Machine hood with lateral PVC protective curtains •pneumatic clamping cylinder left - right •pneumatic cross-cutting operation using two-hand control •electrical saw blade inclination 90 – 30° •Revolving table 0 - 270° •Laser light for cross-cutting •Saw bla de height adjustment via mechanical stop system with scale •TCT saw blade 650 mm, dust extraction spigots 160 / 125 mm •Drive motor 12 kW – direct motor speed 1/min – 3,000 •Saw blade speed 1/min – 3,000 Options Infeed – Outfeed devices Motor power output (S1) KW 12 Drive direkt Motor speed 1/m 3000 Sawblade speed 1/m 3000 Peripheral speed of saw m/s 102 TCT – sawblade mm 650 Cutting height 90/45/30° ca. mm 245 / 164 / 113 Table dimensions m 1,5 x 1,5 x 0,9 Sawblade inclination ° 90-30 Revolving table, angle ° 0-270 Ø Dia. Dust extraction spigots mm 160 / 125 Vacuum at dust extraction spigots pa 1750 Sound power level against DIN EN ISO 3746 run at no load – run at load dB 107,5 / 109,1 Emission sound pressure against prEN ISO 11202 in connection with CEN TC 142 run at no load – run at load dB 92,2 / 95,6
