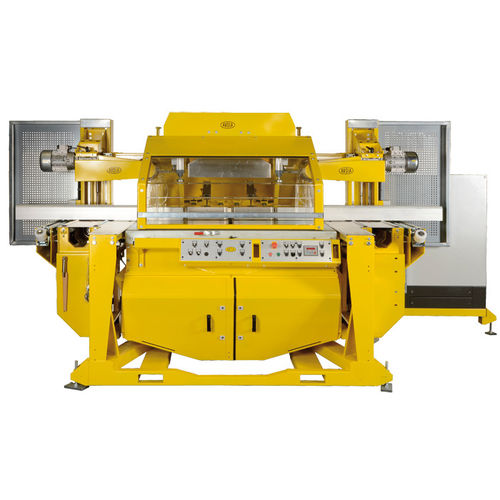

Circular saw GAMA 80 V

woodautomaticpneumatic

Equipment / scope of supply •Motor rating 22 kW (P1) / 400 Vac-50 Hz star delta start gear drive •Motor speed rpm 3.000 / sawblade speed rpm 2.200 •Cutting height 90° / 310 mm – 45° / 217 mm – 30° / 149 mm •Electrical sawblade inclination 90 – 30° •Revolving table 0-270° •Machine table with lateral movement 650 mm •Automatic vertical pneumatic clamping cylinders right / left •Laser light for cross cutting •TCT-sawblade, 800 x 30 x T90 •Dust extraction spigots 160 / 160 / 80 / 80 mm •Sawblade height adjustment via mechanical stop system, with measuring scale, easy to adjust •DUO infeed / outfeed devices Motor power output (S1) KW 22 Drive Getriebe Motor speed 1/m 3000 Sawblade speed 1/m 2200 Peripheral speed of saw m/s 90 TCT – sawblade mm 800 Cutting height 90/45/30° ca. mm 310 / 217 / 149 Dimensions m 4,4 x 2,2 x 2,0 Sawblade inclination ° 90-30 Revolving table, angle ° 0-270 Ø Dia. Dust extraction spigots mm 160 / 160 Vacuum at dust extraction spigots pa 1750 Sound power level against DIN EN ISO 3746 run at no load – run at load dB 102,0 / 106,0 Emission sound pressure against prEN ISO 11202 in connection with CEN TC 142 run at no load – run at load dB 87,0 / 91,0
