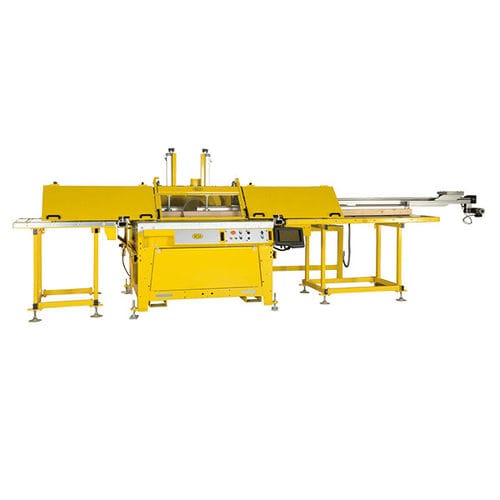

Circular saw GAMA 65 K3

woodfully-automaticwith tilting blade

REVOLVING CROSS CUT SAW WITH NC PROGRAMMING SYSTEM GAMA 65 K3 Fully automatic circular saw for positioning and controlling via touchscreen with length measuring system EXENSO COMFORT (Pusher system) Application Length stop system (pusher operation), revolving table and sawblade inclination via servo - motor for positioning ( cross cut, mitre cut or compound mitre cut) of heavy workpieces, i.e. carpenter industry, gluelam industry, log house industry, wooden frame work, solid wood, etc. Technical Equipment •Motor rating 8,1 kW / 400 Vac-50Hz, star / delta start, direct driven •Motor speed 3.000 rpm •Electrical sawblade inclination 90-30° via servo motor •Laser light for cross cutting •Sawblade height at 90° / 245 mm – 45° / 164 mm – 30° / 113 mm •TCT – sawblade 650 x 30 x T 54 •Dust extraction spigot 125 / 80 mm •Revolving table 20° - 160° •Horizontal material clamping system, right - left •pneumatische Kappvorrichtung über ZweihandSteuerung/vollautomatisch •Length measuring via pusher system EXENSO COMFORT •Available length measuring 3 m - 14 m •completely protected machine case •Pneumatic safety hood •USB Plug •LAN Plug Motor power output (S1) KW 8,1 Drive direkt Motor speed 1/m 3000 Sawblade speed 1/m 3000 Peripheral speed of saw m/s 102 TCT – sawblade mm 650 Cutting height 90/45/30° ca. mm 245 / 164 / 113 Dimensions m 4,8 x 1,75 x 2,0 Sawblade inclination ° 90-30 Revolving table, angle ° 20-160 Ø Dia. Dust extraction spigots mm 125 / 80 Vacuum at dust extraction spigots pa 1750 Sound power level against DIN EN ISO 3746 run at no load – run at load dB 107,5 / 109,1
