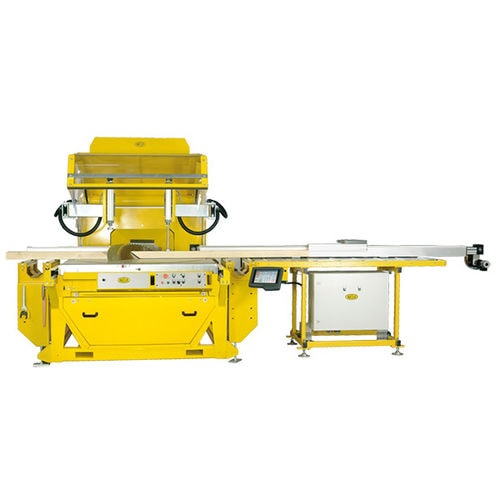

Circular saw GAMA 65 V3

woodfully-automatictabletop

LATERALLY MOVABLE UNDERTABLE CROSS-CUT SAW / RIP CUT SAW FULLY AUTOMATIC CIRCULAR SAW FOR POSITIONING AND CONTROLLING VIA TOUCHSCREEN WITH LENGTH MEASURING SYSTEM EXENSO COMFORT (PUSHER SYSTEM) Application Length stop system (pusher operation), revolving table with lateral movement and sawblade inclination via servo - motor for positioning (rip cut, cross cut, mitre cut or compound mitre cut) of heavy workpieces, i.e. carpenter industry, gluelam industry, log house industry, wooden frame work, solid wood, etc. Equipment / scope of supply •Motor rating 12 kW / 400 Vac-50Hz, star / delta start, direct driven •Motor speed 3.000 rpm •lateral movement of machine table 400 mm with pneumatic brake system •Electrical sawblade inclination 90-30° via servo motor •Laser light for cross cutting •Cutting height at 90° / 245 mm – 45° / 164 mm – 30° / 113 mm •TCT - sawblade 650 x 30 x T 54 •Dust extraction spigot 125 / 160 mm •Revolving table 0° - 270° •Vertical material clamping system, pneumatic, right-left •Horizontal material clamping system, right - left •Two-hand-cross-cutting operation •Length measuring via pusher system EXENSO COMFORT •Available length measuring 3 m - 14 m •sawblade height adjustment 0 - 245 mm, mechanical stop system with scale •Completely protected machine case Motor power output (S1) KW 12 Drive direkt Motor speed 1/m 3000 Sawblade speed 1/m 3000 Peripheral speed of saw m/s 102 TCT – sawblade mm 650 Cutting height 90/45/30° ca. mm 245 / 164 / 113 Abmessung m 4,8 x 2,3 x 2,1 Sawblade inclination ° 90-30 Revolving table, angle ° 0-270 Ø Dia. Dust extraction spigots mm 160 / 125
