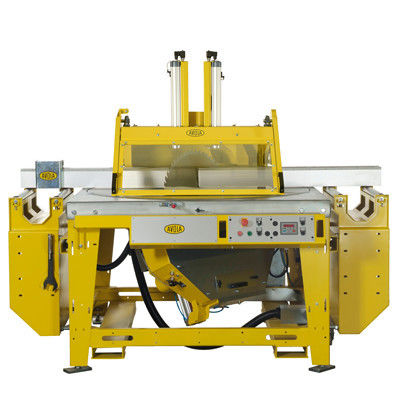

Circular saw GAMA 65 K

miterwoodfor beams

Technical Equipment •Motor rating 8,1 kW/400 Vac-50 Hz, star / delta start •sawblade mounted direct on motor shaft •Motor speed 3.000 rpm / sawblade speed 3.000 rpm •Sawblade height at 90° / 245 mm – 45° / 164 mm – 30° / 113 mm •Electrical sawblade inclination 90 – 30° – digital readout •Revolving table 20° – 160° •Two-hand pneumatic cross cutting operation •Laser light for cross cutting position •TCT-sawblade, dia. 650 x 30 mm x T 54 •Dust extraction spigot 125 / 80 mm Options •Additional clamping cylinders, horizontal, left-right •Brush curtain for safety clamping hood Motor power output (S1) KW 8,1 Drive direkt Motor speed 1/m 3000 Sawblade speed 1/m 3000 Peripheral speed of saw m/s 102 TCT – sawblade mm 650 Cutting height 90/45/30° ca. mm 245 / 164 / 113 Table dimensions m 1,5 x 1,5 x 0,9 Sawblade inclination ° 90-30 Revolving table, angle ° 20-160 Ø Dia. Dust extraction spigots mm 125 / 80 Vacuum at dust extraction spigots pa 1750 Sound power level against DIN EN ISO 3746 run at no load – run at load dB 107,5 / 109,1 Emission sound pressure against prEN ISO 11202 in connection with CEN TC 142 run at no load – run at load dB 92,2 / 95,6
