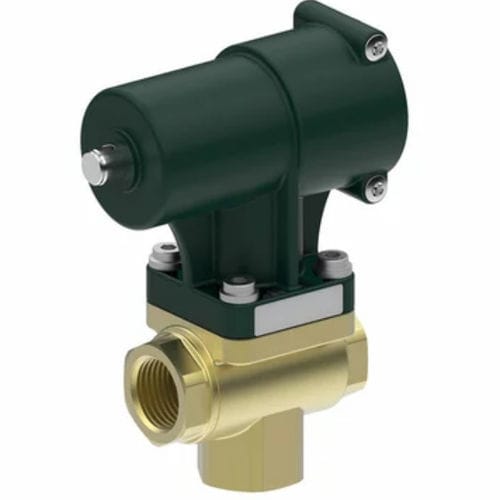

Piston valve 626201
pneumaticfor waterfor oil

piston valve
piston valve
Add to favorites
Compare this product


Characteristics

Type
piston
Operation
pneumatic
Media
for water, for oil, for compressed air, for natural gas
Body
small, brass, EPDM, PA
Number of channels
2/3-way
Other characteristics
ISO, coaxial, media separated, grease
DN

Min.: 15 mm
(0.591 in)

Max.: 20 mm
(0.787 in)

Pressure

Min.: 0 bar
(0 psi)

Max.: 16 bar
(232.1 psi)

Temperature

Min.: -10 °C
(14 °F)

Max.: 120 °C
(248 °F)

Description

In media-separated piston valves, a pivoted lever in conjunction with the membrane fitted on it ensures low-friction power transmission with high tightness. Due to the “lever arm effect”, only a small dimensioned pneumohydraulic drive is required.
