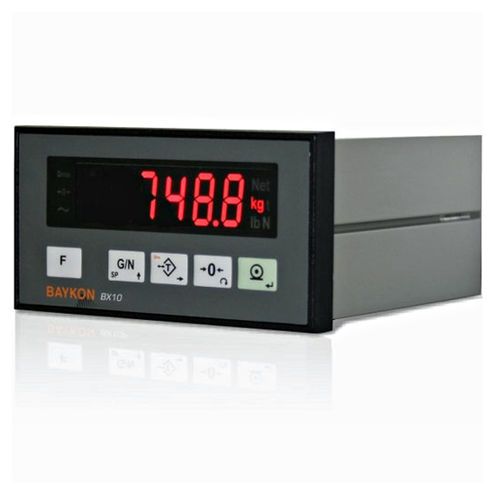

Programmable process controller Baykon BX10

compact

LOW COST, HIGH QUALITY PANEL MOUNTED WEIGHING PROCESS CONTROLLER The Baykon BX10 is a state-of-the art process indicator designed for industrial weighing applications. It has a standard RS-232C serial port and 2 Digital IO ports which are programmable as either an input or output. Powerful calibration options include eCal Electronic Calibration without the need for test weights and sCal for span only calibration. This enables fast and easy setup and servicing and is ideal for calibrating large hoppers where emptying them is not an easy option. High accuracy and reliable weighing performance for all process applications The BX10 features powerful adaptive digital filtering for fast stability and a display resolution up to 999.999. The indication is extremely stable with up to 1600 conversion per second speed. The small sized aluminum body is ideal for panel installations where space is at a premium and it's large 13.5 mm Red LED display provides easy reading from a distance. • OIML Approved • Compact Panel Mount Display • Aluminium Body/ASB Front • 13.5mm High LED Display • 12-28VDC • 1600 Samples/second • 16 Million Internal Counts • Fast Standard Calibration • eCal Electronic Calibration • RS232 Port • 2 programmable DIO's • Advanced Filtering Accuracy class : OIML class III EU type approval : 10.000 divisions Linearity : % 0.0015 FS Temperature coefficient : 2 ppm/°C Display : 6 digits, 7 segments, red, 13.5 mm high Status annunciators : Gross, net, motion, centre of zero, unit Keyboard : 5-keys (function, GN, tare/clear, zero, print) Key lock : Keys can be locked against unauthorized access Type : 24 bit Delta-Sigma ratiometric ADC
