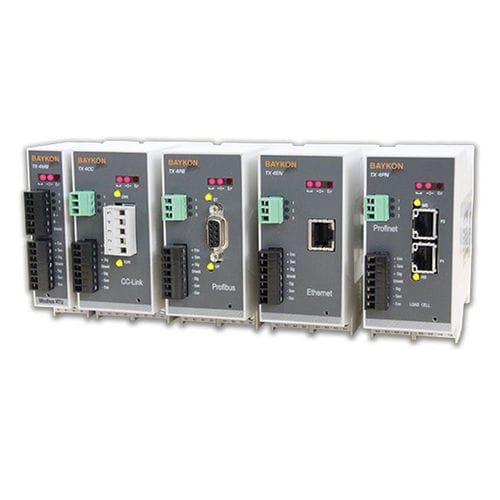

Digital weight transmitter TX4 series

Modbus RTUEthernetDIN rail

ULTRA FAST DIGITAL WEIGHT TRANSMITTER WITH DIGITAL INPUTS AND OUTPUT The TX4 Digital Transmitter is ultra fast (800 measurements per second), accurate and reliable and easily integrated into process control and force measurement systems. Designed for static or dynamic weighing and force measurement processes the TX4 provides fast and accurate digital data through RS-232C, RS-485, Ethernet TCP/IP and fieldbus systems including Profibus, Modbus TCP, Modbus RTU, Profinet, CANopen, EtherNet/IP, EtherCAT, CC-Link and Powerlink. Inputs and Output available to the PLC - no need for additional IO Board! The TX4 features 1 fixed output and 2 configurable inputs or outputs that can be directly controlled by the PLC. It's setup and calibration is quick and easy with free Xface PC Software and eCal Electronic Calibration. A programmable smart filter minimizes any ambient vibration to produce the best possible filtered signal to your PLC for any weight and force measurement systems. Matched production ensures quick servicing as transmitters can be directly replaced out of the box without the need for calibration. eCal Electronic Calibration gives the advantage of easy calibration of high capacity tanks and silos. DIN Rail mounting makes the TX2 easy to incorporate into new or existing cabinets. TX4 Key Features: • Ultra Fast Digital Transmitter • 800 measurements/sec • RS232 and RS485 Serial Port • 1 Digital Output • 2 Digital Inputs or Outputs • Zeroing, Taring, Motion etc • Advanced Filtering and stability • Standard or eCal Calibration via PC • Easy setup via PC • Power: 11-28VDC • Internal Resolution: 8 million counts • Matched Production for quick servicing
