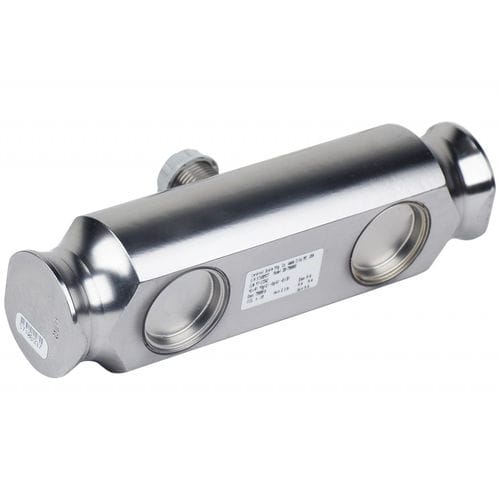

Double-ended shear beam load cell Cardinal DB-50000Sbeam typeweighingOIML
Add to favorites
Compare this product
Characteristics
- Type
- double-ended shear beam
- Form
- beam type
- Applications
- weighing
- Other characteristics
- OIML, stainless steel, IP68
- Rated load
22,680 kg
(50,000.84 lb)
Description
The DB Double Ended Shear Beam Loadcell is suitable for high capacity applications, and is ideal for multiple loadcell compression applications such as weighbridges, railroad track scales and heavy duty tank weighing applications.
We also offer a Stainless Steel Adaptor for use with existing proprietary double ended shear beam pedestals.
Material: Stainless Steel
Construction: Fully Welded
Capacity: 22,680kg
OIML: R60/1991-DK-99.01
Accuracy Class: C3
IP Rating: IP68
