Flash chromatography system CombiFlash NextGen

processlaboratoryELSD

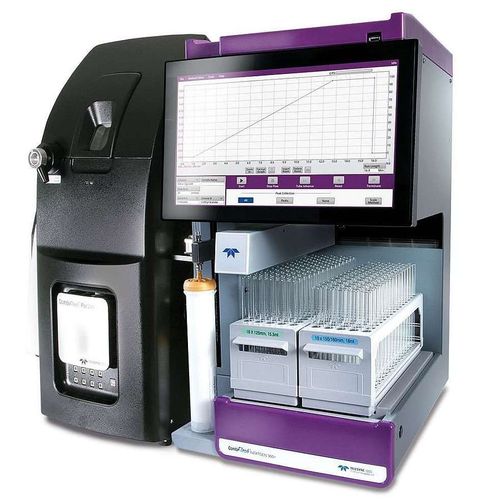

The NextGen is the newest member of the CombiFlash family from Teledyne Isco. The advanced flash chromatography system provides fully automated, fast and reliable purification of compounds. The system has a larger touch screen, the pumps offer more pressure and higher flow rates. Valves and detectors have also been improved. The enhanced PeakTrak software for controlling and documenting the fraction distribution into the Foxy fraction collectors is faster, more interactive and informative without sacrificing clarity and intuitive handling. PeakTrak allows the graphical display of the separations and the localization of the collected fractions. The PeakTrak software with color-coded graphics allows a fast and error-free assignment of the collected fractions to defined peaks. The system is easy to operate, efficient, robust and low maintenance. The new NextGen 300+ is just as compact as the CombiFlash family to date. The CombiFlash NextGen 300+ replaces the CombiFlash Rf+. The system can be configured individually. Equipment details such as detectors, racks or valves can be selected to suit your requirements. compact design: footprint 36 x 44 cm (WxD), height 66.0 cm; weight 28 kg without ELSD, 34 kg with ELSD no external PC required large display optionally 12" or 15" touchscreen. Control and data evaluation via Ethernet interface possible high fractionation capacity into different racks, RFID recognition of the rack and automatic setting of the max. collection volume, standard method is loaded automatically Level monitoring of the solvent and waste containers prevents the cartridges from running dry or overfilling the waste
