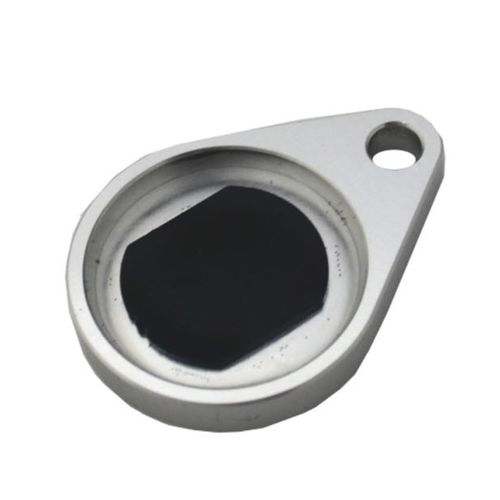

UHF label AX’Tag Viking

for metalfor metal surfaces

With the factor shape of a keyfob, this ultra rugged UHF tag is perfectly suited for outdoor applications such as tracking of construction equipment and tools. This metal-encapsulated epoxy tag is resistant to harsh environmental conditions and shocks (IP68 protection degree). In addition, it is easy to attach to any equipment with a metal or plastic cable tie. Dimensions - 32 x 43mm, thickness: 5,5mm Material - Aluminium / epoxy Mounting method - Attachement with a cable tie Applicable surface - On metal IP rating - IP68 Chips available - Alien Higgs-3 Write cycles - 100, 000 times at 25°C Data retention - 50 years Memory - EPC memory: 96 bits Use:r 512 bits TID: 64 bits Read range - In metal: n/a On metal: 2m Off metal: n/a *Depends on the reader and the environment Temperature - Storage temperature: -20°C to +80°C Application field - Tracking of construction equipment and tools
