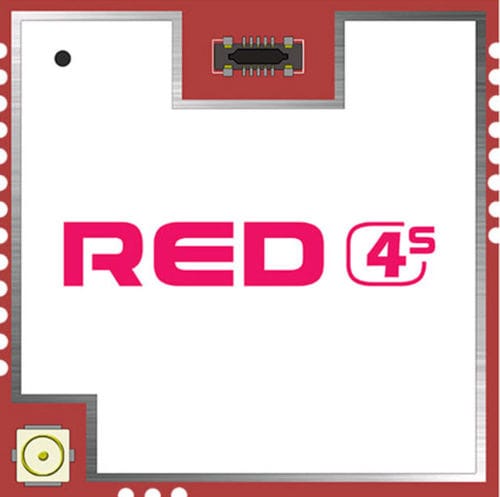

Compact RFID module RED 4S

UHF

RED 4S is an RFID UHF OEM module offering an output power of 27dBm adjustable by 1dB step. It is part of the RED Series which proposes superior performance, compact form factor and advantages in time-to-market to customers. Suitable for high performance RFID reader but also applicable for small-sized mobile RFID reader. Key benefits Compact form factor fully integrated Leakage cancellation Compatible with EPC Gen2 V.2 0 Dimensions - 24 x 24 x 3mm Chipset - Phychips PR9200 Air protocol - ISO 18000-6 / EPC Class 1 Gen2 V2 Output Power - 13-27 dBm typ. (Adjustable by 1dB step) (Japan: 13 ~ 23dBm) Interface - UART (default) Antenna port: UFL port Connector: Power and signal connector Antenna channels - 1 channel Power consuption - 550mA @ 27dBm CW 20mA @ idle mode > 10mA @ power down mode Leakage cancellation - Available Channel share - Frequency Hopping or LBT (Listen-Before-Talk) Modulation - DSB-ASK Encoding - Miller 2, 4, 8 and FM0 (default: M4) Intput voltage - 3.3V (DC±5%)
