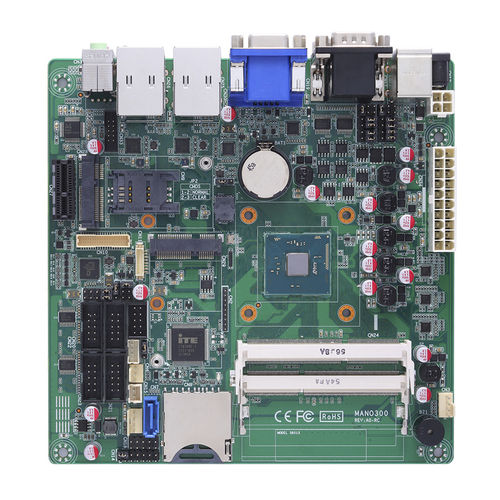

Mini-ITX motherboard MANO300

Intel® Celeron®Intel®industrial

Features Intel® Celeron® processor N3160 2.24 GHz (Braswell) 2 DDR3L-1600 SO-DIMM, up to 8GB PCI Express Mini Card and PCIe x1 slot 4 USB 3.0 and 2 USB 2.0 ports 1 SATA-600, 1 mSATA and 1 SDXC 6 COM ports 12 VDC and STD ATX VGA,HDMI and LVDS with triple-view supported Introduction The MANO300 mini-ITX motherboard built with the latest Intel® Celeron® processor N3150 (codename: Braswell) with integrated Intel® Gen 8 graphics supporting up to 4K resolution. Two SO-DIMM sockets are provided to support up to 8GB of DDR3L-1600 memory. The 12V single voltage DC power jack or ATX power makes the power input selection more flexible for different automation and embedded industries. Its friendly fanless cooling system design and compact form factor aimed at space-limited applications as well as harsh environments.
