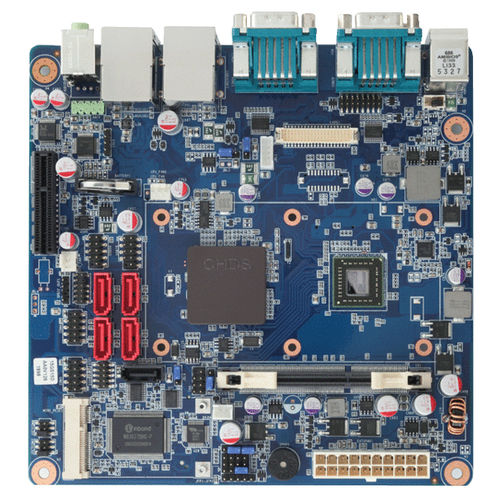

Mini-ITX motherboard MANO120

AMD® G-SeriesAMD A55EAMD

Features AMD G-Series APU T56N 1.65 GHz AMD A55E FCH 1 DDR3-1066/1333 SO-DIMM, up to 4GB 18 bit single channel LVDS VGA/HDMI/LVDS with dual-view supported PCIe x4 slot and PCI Express Mini Card SATA-600 AT/ATX mode supported Introduction The MANO120, a graphics-rich Mini ITX motherboard is based on the new AMD G-Series APU dual core T56N with AMD A55E FCH. Integrated with Radeon™ HD 6320 graphics with DirectX 11 technology, the MANO120 offers advanced 3D graphics and dual views via VGA and HDMI connection on the rear I/O, as well as onboard 18 bit single channel LVDS interface. The onboard SO-DIMM socket supports up to 4 GB of DDR3 1333 memory. It also has a wide range of storage with five SATA-600 ports and a mainstream CFast™ slot. To satisfy expansion capability requirement for industrial application needs, the MANO120 comes with one PCIe x4 slot and one PCI Express Mini Card slot. With advanced performance in both computing and graphics, this industrial grade motherboard meets the requirement of system developers in the gaming, digital signage, DVR, and NVR.
