MPEG video codec AXIS Q7414

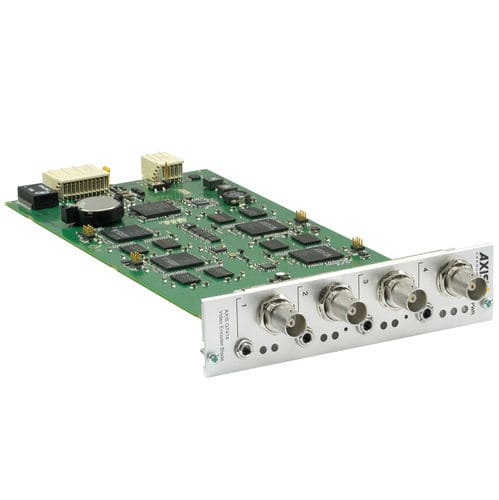

Superb video quality Multiple H.264 streams 4 audio channels Support for balanced microphones Intelligent video capabilities High-density solution High-density video encoder rack solution AXIS Q7414 Video Encoder Blade is a 4-channel blade for video encoder rack solutions, enabling large numbers of analog cameras and audio channels to be integrated into an IP-based, high-density video surveillance system. When AXIS Q7414 blades are used with AXIS Q7900 Rack, up to 56 analog cameras can be supported in one 4U, 19-inch rack. Outstanding compression capabilities AXIS Q7414 supports high performance H.264, with true multi-streaming from each channel. It can provide multiple, individually configurable video streams from each channel at full frame rate in all resolutions up to D1 (720x480 in NTSC, 720x576 in PAL). Motion JPEG is also supported for increased flexibility. Intelligent video capabilities AXIS Q7414 offers intelligent capabilities such as enhanced video motion detection, active tampering alarm and audio detection. The encoder’s external inputs and outputs can be connected to devices such as sensors and relays, enabling the system to react to alarms and activate lights or open/close doors.
