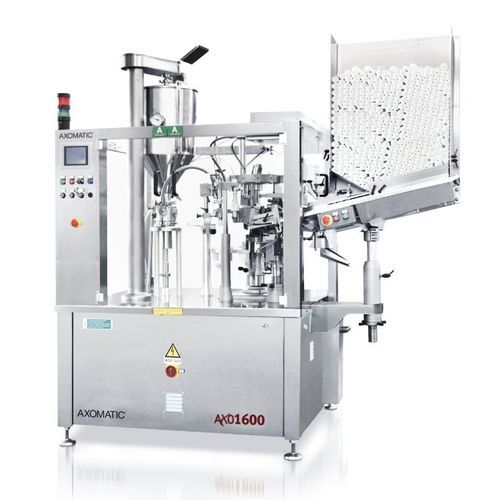

Tube filling and closing machine AXO 1600

for pharmaceutical applicationsfor the cosmetics industry

Automatic tube filling and closing machine for filling and closing of Aluminium, Politene or Metal tubes. • Maximum output 6.000 pieces / hour • Control panel touch&screen with all the main functions • Automatic tube loading from the tube magazine • Automatic tube orientation • Automatic filling with mechanical dosing system with dosage range between 3 and 250ml • Diving nozzle for an accurate dosage of the bottom of the tube, adjustabel stroke 130mm • Mechanical jaw closing system for aluminium tubes, with simple, double or saddle fold • Hot jaws for politene, laminated and polyfoil tubes • Hot air sealing system for politene, laminated and polyfoil tubes • Ultrasonic sealing system for politene tubes • Possibility to realize sagomated sealing system following ti Customer drawings such as round edge, curved seal, wave seal etc. • Axomatic machine can work up to 60mm plastic tubes Technical data • Speed 100 pieces per minute • Dosing range Between 3 and 250 ml (450 ml optional) • Tube diameters : 13,5-50 mm (60 mm optional) • Tube heights 70-250 mm • Stations 16
