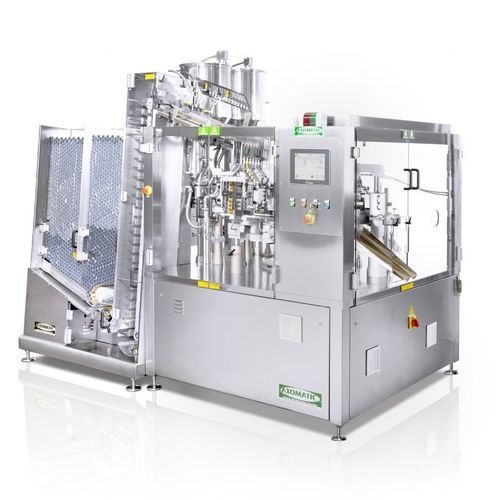

Tube filling and closing machine AXO 2600

for the cosmetics industryfor pharmaceutical applications

Automatic filling and closing machine for metal, laminated and plastic tubes. • Machine body covers, electrical cabinet completely in Stainless Steel AISI 304L • Control panel touch&screen with all the main machine functions, suitable for Industry 4.0 • Ergonomic tube loader of big capacity • No-tube no-filling control device, actuated by electronic sensor • Accurate automatic tube orientation by registration mark scanner • Two independent dosing groups driven by separated servomotors • Easy cleaning of all parts in contact with the product • New hot air sealing system with low air consumption • Two diving nozzles for an accurate dosage of the bottom of the tube, adjustable stroke 130 mm • Possibility to realise customised sealing systems • Special application to fill 2 or 3 colors toothpaste, canula tubes, syringes, lip gloss and mascara • Number of Turntable stations: “26” • Machine in compliance with CFR 21 PART 11 with audit trail (option) • Full Atex certification (option) • Filling and Capping of 2 or 3 color mascara (option) Technical data • Speed 200 pieces per minute • Dosing range Between 3 and 250 ml • Tube diameters : 13,5-50 mm • Tube heights 70-250 mm • Stations 26
