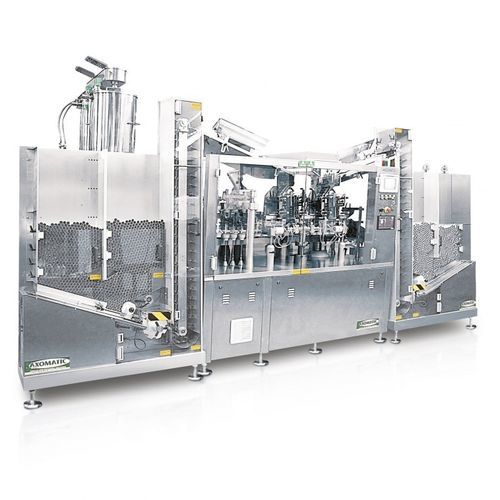

Tube filling and closing machine AXO 4800

for pharmaceutical applicationsfor the cosmetics industry

Automatic Tubes Filling and Closing Machine capable of filling liquid, semi viscous and viscous products into collapsible metal, plastic and laminate tubes. • Machine body covers, electrical cabinet completely in Stainless Steel AISI 304L • Electric control cabinet integrated in the machine perimeter, with easy access to all machine devices • Two ergonomic tube loaders of big capacity for feeding tube from tray • Control panel touch&screen with all the main functions, suitable for Industry 4.0 • Four independent dosing groups made in Stainless Steel AISI 316L, driven by separated servomotors • Easy cleaning of all parts in contact with the product • Four diving nozzles for an accurate dosage of the bottom of the tube, adjustable stroke 120 mm • New hot air sealing system with low air consumption • Possibility to realise customised sealing systems • Number of turntable stations: “48” • Machine in compliance with CFR 21 PART 11 with audit trail (option) C.I.P. • System for the dosing groups (option) • Full Atex certification (option) Technical data • Speed 275 pieces per minute • Dosing range Between 3 and 250 ml • Tube diameters : 13,5-50 mm • Tube heights 70-220 mm • Stations 48
