Brushless servomotor Mack Motor (MKM)
ACthree-phase400 V

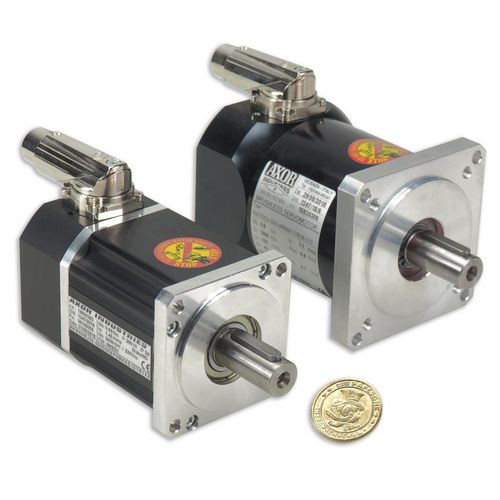

Brushless servomotor - Mack Motor (MKM) - AXOR INDUSTRIES - AC / three-phase / 400 V
Brushless servomotor - Mack Motor (MKM) - AXOR INDUSTRIES - AC / three-phase / 400 V
Brushless servomotor - Mack Motor (MKM) - AXOR INDUSTRIES - AC / three-phase / 400 V - image - 2
Brushless servomotor - Mack Motor (MKM) - AXOR INDUSTRIES - AC / three-phase / 400 V - image - 3
Brushless servomotor - Mack Motor (MKM) - AXOR INDUSTRIES - AC / three-phase / 400 V - image - 4
Brushless servomotor - Mack Motor (MKM) - AXOR INDUSTRIES - AC / three-phase / 400 V - image - 5
Brushless servomotor - Mack Motor (MKM) - AXOR INDUSTRIES - AC / three-phase / 400 V - image - 6
Add to favorites
Compare this product


Characteristics

AC/DC
AC, three-phase
Type
brushless
Voltage
400 V, 220 V
Protection class
robust, IP54, IP65
Configuration
compact
Number of poles
8-pole
Other characteristics
high-efficiency, low-noise
Power

Max.: 3,500 W
(4.759 hp)

Min.: 50 W
(0.068 hp)

Torque

Max.: 11 Nm
(8.1132 ft.lb)

Min.: 0.16 Nm
(0.118 ft.lb)

Rotational speed

1,500 rpm, 3,000 rpm
(9,424.78 rad.min-1, 18,849.56 rad.min-1)

Description

Brushless Servo Motor A very robust, high performance, low noise motor for AC three phase voltage supplies. Engineered & designed to meet axis control applications up to 11Nm. Compact dimensions and long-term reliability. FEATURES 8 Pole, no cogging B.E.M.F. sine wave Medium rotor inertia Very low torque fluctuation at minimum speed Single-turn or multi-turn absolute Mack® serial encoder Holding brake Higher rotor inertia Protection rating IP54 & IP65 PTC thermal cutout Special flanges and shafts SINGLE HYBRID CABLE Power, feedback and signals in one cable Mobile chain track usage, flame / oil resistant External sheath in PUR polyurethane 5 million bend cycles Minimum bending radius: 7 x Ø mm Springtek connector 270° swivel, spring lock Forward & reverse mounted connector
