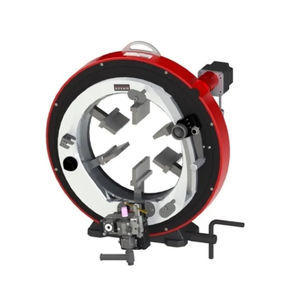

TIG orbital welding machine SX122-NAOFsemi-automaticbenchtopfor pipe
Add to favorites
Compare this product
Characteristics
- Technique
- TIG
- Operational mode
- semi-automatic
- Configuration
- benchtop
- Applications
- for pipe
- Other characteristics
- integrated, precision, water-cooled, cutting
- Weld thickness
12.7 mm
(0.5 in)
Description
Prefabrication orbital welding machine with electronic regulation of arc voltage (AVC) and oscillation (OSC) for multi-pass welding.
It enables production of medium to large series of welding sub-assemblies.
Easy to use: Intuitive interface and parameters adapted to the characteristics of the tubes integrated into the SAXX power sources range.
Evolutive machine : can be transformed into an orbital cutting and bevelling machine.
Orbital TIG welding machine for prefabrication with AVC/OSC system, water cooled
- Basic stainless steel jaws Ø 29 to Ø119 mm
- Extra stainless steel jaws Ø 12 to Ø 99 mm
- Rotation connected to the SAXX range welding generator
- Operating factor of 100% : 200A (water cooled)
- Weight : 46 kg
