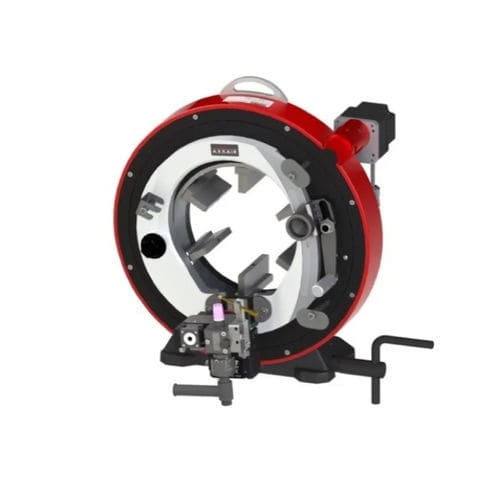

TIG orbital welding machine SX222-NAOF
semi-automaticbenchtopfor pipe

TIG orbital welding machine - SX222-NAOF - AXXAIR - semi-automatic / benchtop / for pipe
TIG orbital welding machine - SX222-NAOF - AXXAIR - semi-automatic / benchtop / for pipe
TIG orbital welding machine - SX222-NAOF - AXXAIR - semi-automatic / benchtop / for pipe - image - 2
TIG orbital welding machine - SX222-NAOF - AXXAIR - semi-automatic / benchtop / for pipe - image - 3
TIG orbital welding machine - SX222-NAOF - AXXAIR - semi-automatic / benchtop / for pipe - image - 4
TIG orbital welding machine - SX222-NAOF - AXXAIR - semi-automatic / benchtop / for pipe - image - 5
Add to favorites
Compare this product

Go to the AXXAIR website for more information

Characteristics

Technique
TIG
Operational mode
semi-automatic
Configuration
benchtop
Applications
for pipe
Other characteristics
integrated, water-cooled
Weld thickness

12.7 mm
(0.5 in)

Description

Prefabrication orbital welding machine with electronic regulation of arc voltage (AVC) and oscillation (OSC) for multi-pass welding. It enables production of medium to large series of welding sub-assemblies. Easy to use: Intuitive interface and parameters adapted to the characteristics of the tubes integrated into the SAXX power sources range. Evolutive machine : can be transformed into an orbital cutting and bevelling machine. Orbital TIG welding machine for prefabrication with AVC/OSC system, water cooled - Basic stainless steel jaws Ø 128 to Ø228 mm - Extra stainless steel jaws Ø 55 to Ø 155 mm - Rotation connected to the SAXX range welding generator - Operating factor of 100% : 200A (water cooled) - Weight : 61 kg
