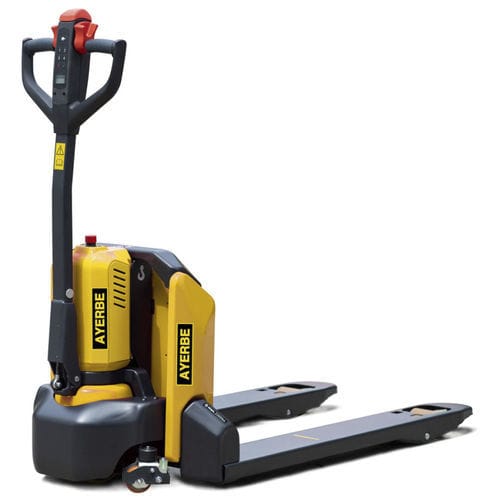

Electric pallet truck 24 Vhandling
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Voltage
- 24 V
- Other characteristics
- handling
- Load
1,500 kg
(3,306.93 lb)- Lifting height
115 mm
(4.5 in)- Fork length
800 mm, 1,000 mm, 1,150 mm
(31.5 in, 39.37 in, 45.28 in)- Fork width
540 mm, 685 mm
(21.3 in, 27 in)- Battery capacity
20 Ah
- Speed
4.6 km/h, 4.8 km/h
(2.86 mph, 2.98 mph)- Weight
4.6 kg
(10.14 lb)
Description
3 DIFFERENT BLADE SIZE OPTIONS
Propulsion: electric
Max. capacity:1500 kg.
Fork lenght: 1150 x 540 mm. (code 584800)
Fork lenght: 800 x 540 mm. (code 584810)
Fork lenght: 1000 x 685 mm. (code 584820)
Lifting height: 115 mm.
Min. height: 80 mm.
Height with rudder (min./max.): 700 /1160 mm.
Turning radius: 1330 mm.
Speed with load: 4,6 km./h.
Speed without load: 4,8 km./h.
Lifting speed with load: 0,02 m./s.
Lifting speed without load: 0,025 m./s.
Descent speed with load: 0,05 m./s.
Descent speed without load: 0,04 m./s.
Max slope permissible with load:4%
Max slope permissible without load: 16%
Brake: electromechanical
Wheels: (PU)
Drive wheels: Ø 210 x 70 mm.
Front rollers: Ø 80 x 70 mm.
Side wheels: Ø 80 x 30 mm.
Traction engine: 0,65 Kw.
Battery Lithium 24 V. / 20 Ah.
Battery weight: 4,6 kg.
