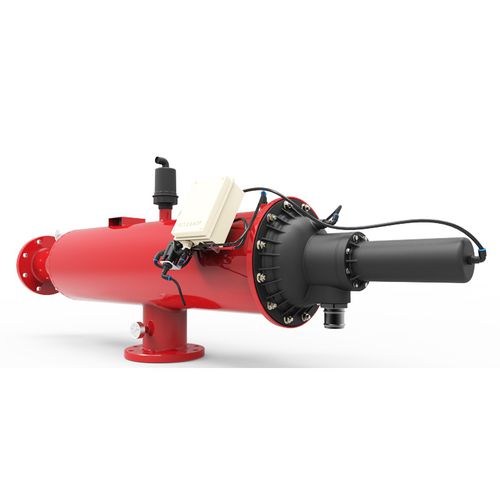

Water filter VHF seriescartridgestainless steelautomatic
Add to favorites
Compare this product
Characteristics
- Designed for
- water
- Filtration element
- cartridge
- Material
- stainless steel
- Other characteristics
- automatic, high-performance
- Operating pressure
Max.: 25 bar
(362.594 psi)Min.: 0 bar
(0 psi)- Filtration size
Max.: 2,000 µm
Min.: 20 µm
- Flow
Max.: 320 m³/h
(11,300.693 ft³/h)Min.: 120 m³/h
(4,237.76 ft³/h)
Description
Body MaterialST-37 / AISI 316L / AISI 304 L
Screen MaterialAISI 304L , PRGF
Maximum Working Pressure10 bar (145 Psi) (optionally up to 25 bars (360 psi)
Maximum Output Pressure2 bar (29 Psi)
Maximum Working Tempreture60 ⁰ C (140 F)
Back Flushing TypeTime and / or Pressure Differantial
Back Flush Control SystemElectronic (AC/DC ) , Hydraulic Control
Filtration Degree20-2000 micron (µ
Painting MethodElectrostratic Powder Cotaing
Paint MaterialEpoxy Polyester
The filter body is St-37 or stainless-steel optionality
The filtering in pressured lines
High performance during the back washing
Extensive Filtering Surface
Easy-to assembly and fitler components, not required to change
100% back washing performance
The back washing time for 50-30 sec.
Working opportunity, not required additional energy
The minimum head and water loss
