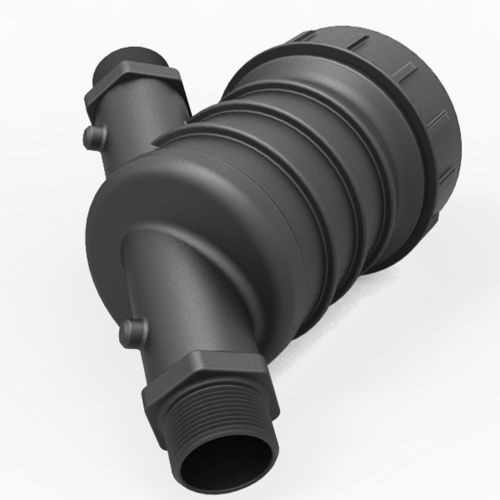

Liquid filter MP seriescartridgediscplastic
Add to favorites
Compare this product
Characteristics
- Designed for
- liquid
- Filtration element
- cartridge, disc
- Material
- plastic
- Operating pressure
Max.: 8 bar
(116.03 psi)Min.: 0 bar
(0 psi)- Filtration size
20 µm, 50 µm, 100 µm, 125 µm
- Flow
Max.: 12 m³/h
(423.776 ft³/h)Min.: 3 m³/h
(105.944 ft³/h)
Description
BODY MATERIALPA %30 GFR
CARTRIDGE MATERIALPP (disc) PA (screen AISI 304 cage PA )
MAXIMUM WORKING PRESSURE8 BAR (116 PSI)
MAXIMUM WORKING TEMPERATURE60 ⁰ C (140 F)
THE FILTRATION DEGREE20-50-100-125 micron
CARTRIDGE OF FILTERSD: disc cartridge
E: screen cartridge
