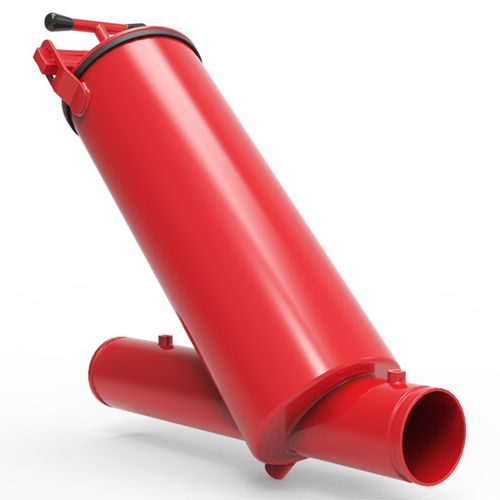

Liquid filter YD seriescartridgediscPP
Add to favorites
Compare this product
Characteristics
- Designed for
- liquid
- Filtration element
- cartridge, disc
- Material
- PP, metal
- Operating pressure
Max.: 8 bar
(116.03 psi)Min.: 0 bar
(0 psi)- Filtration size
20 µm, 50 µm, 100 µm, 125 µm
- Flow
Max.: 70 m³/h
(2,472.027 ft³/h)Min.: 30 m³/h
(1,059.44 ft³/h)
Description
BODY MATERIALST- 37
CARTRIDGE MATERIAL
PP (disc) PA (screen AISI 304 cage PA )
MAXIMUM WORKIG PRESSURE8 BAR (116 PSI)
MAXIMUM WORKING TEMPERATURE60 ⁰ C (140 F)
THE FILTRATION DEGREE20-50-100-125 micron
CARTRIDGE OF FILTERSD: disc cartridge
E: screen cartridge
