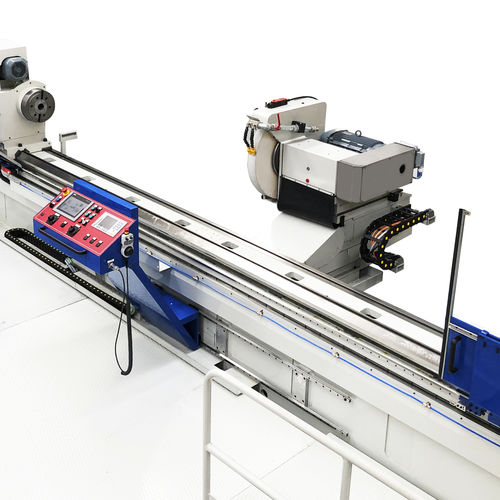

External cylindrical grinding machine RUG4500

for tubesworkpiecemetal profile

AZ Universal grinding machines range has been designed to fulfil the requirements of a wide range of applications that combine external, internal, face and taper grinding of components such as: transmission shafts, electric motor shaft, gas turbine shafts, railway shafts, machine tools shafts, landing gear components, etc. AEROSPACE, RAILWAY, PRINTING INDUSTRY, COLD MILLS, AUTOMOTIVE, INDUSTRIAL VEHICLES, SPINDLES FOR MECHANICAL ENGINEERING APPLICATIONS, ELECTRICAL GENERATORS ... - Wide range of wheelhead configurations - Different models with moving table or moving wheelhead - Partial or total guarding SPECIFICATIONS Centers height 800 [mm] Swing over table 800 [mm] Max lenght of external grinding 4600[mm] Max diameter of grinding wheel 760 [mm] GRINDING ■ Wide range of wheelhead configurations: straight, angular, internal and “B”- axis ■ Silicon carbide, corundum, CBN and diamond grinding wheels allow grinding of different materials and surface treatments including Chromium and HVOF TECHNOLOGY The machine can be supplied with different measurement systems according with customer requirements. APPLICATIONS AEROSPACE, RAILWAY, PRINTING INDUSTRY, COLD MILLS, AUTOMOTIVE, INDUSTRIAL VEHICLES, SPINDLES FOR MECHANICAL ENGINEERING APPLICATIONS, ELECTRICAL GENERATORS transmission shafts, electric motor shaft, gas turbine shafts, railway shafts, machine tools shafts, landing gear components
