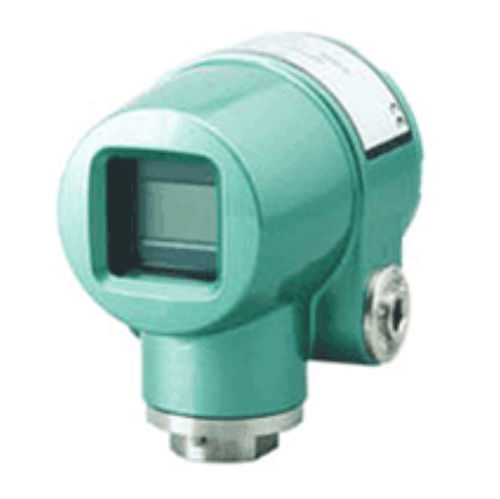

Relative pressure transmitter PTG series

membranedigitalthreaded

The PTG series pressure sensor is a microprocessor-equipped product with semiconductor pressure sensors. The combination of semiconductor pressure sensors and a microprocessor enables high performance and excellent reliability, in addition to compact size and light weight. For use in a diverse range of applications, an optional variable range function and built-in digital indicator are available. Compact, lightweight, and high-performance This sensor has a highly vibration-resistant, compact design and lightweight body (as little as 900 g) that can be directly attached to pipes. With a high accuracy of ±0.5 % F.S., it can be used in the control and monitoring of process pressures. Diverse variety of process connection types The sensor is available with a wide range of process connection types, such as screw (external thread, internal thread, and flush diaphragm), flange, and ferrule (sanitary). This enables process connections to be accommodated flexibly. Broad range/span setting range Five models completely cover the measurement span from 2 kPa to 50 MPa, allowing for use in a wide range of applications. Variable range function (optional) Any range can be set using CommStaff™. A wide pressure range can be measured with a single model, helping reduce the cost of equipment. TIIS explosion proof (PTG70* series) TIIS pressure-resistant oil-immersed type explosion proof Exdo II CT4X certified. It can be used in areas requiring explosion-proof construction.
