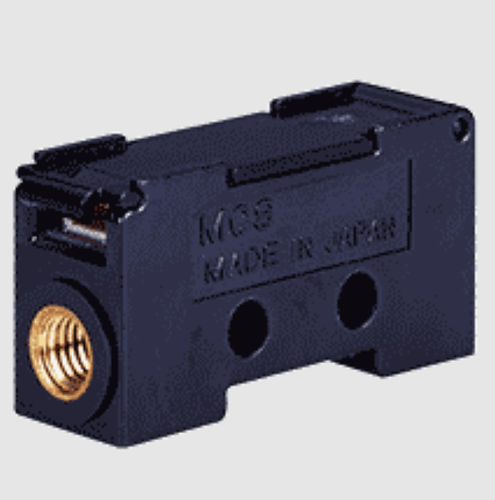

Thermal mass flow sensor MCS100

massairfor oxygen

The model MCS100 is a compact and fast response mass flow sensor created from original MEMS sensor technology with millions of shipments. By combining a thermal MEMS sensor and a low pressure loss flow path, this flow sensor can measure Air, Nitrogen and Oxygen* flow under 10L/min with 5ms fast response, which can also detect flow direction or slight flow rate changes. * Fluid conditions for use with Oxygen : supply pressure 50 kPa or less, concentration 95% or less. Can measure mass flow rate according to the standard condition (20℃, 1 atm) of gas without temperature nor pressure compensation. Small and light weight which can be installed wherever, it’s suited for a variety of flow measurements in such as laboratory and various industry applications. (33.5 x 10.5 x 17.0 mm, just 9g, without cable) Fast response time : 5ms Bidirectional flow range Low power consumption: 12mA max. at 24Vdc Free mounting position and not required straight piping length Control of suction flow rate in air volume samplers, gas detectors, etc. - Measures the mass flow rate intake of the pump without effects from temperature fluctuation or changes in atmospheric pressure. - Operates on battery power on handheld equipment. Control or monitoring of supply flow rate for oxygen concentrators, etc. - Useful for control of oxygen flow rate from compressor, without effects from fluctuation in room temperature or altitude. - Useful for replacing from a float meter.
