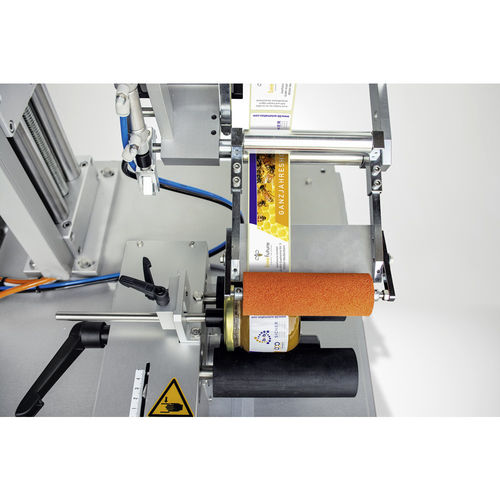

Semi-automatic labeling machine TNC-DS

The TNC-DS series is used to label cylindrical products on the circumference. For this purpose, the product is manually placed in the product turning station. The labelling process is triggered by actuating the foot switch or the optionally available 2-hand control. The product is rotated, and the label is applied precisely to the circumference of the label. As standard, the model is available with different roll widths (100 to 300 mm) and different label applicators (60 to 250 mm wide) or print- and apply systems. Optionally, the labels can be aligned using a welding seam or other product features. If front and back labels are on one label roll, the system can also place several labels on the circumference. The distance between the labels can be adjusted in the PLC. Depending on the operator, the output of this model is between 10 and 15 products/min.
