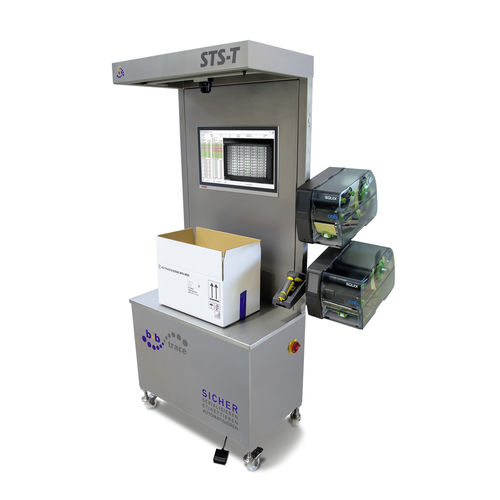

Serialization machine STS-T

The STS-T series is based on high-resolution image chips and is available with resolutions of 12, 20 or 30 megapixels. With the real-time autofocus, any number of barcodes, even if they vary greatly in height, can be easily and reliably captured without mechanical or manual adjustment. For this reason, the system also finds its place in the incoming goods department of large pharmacies or re-importers (in entrance module mode). The field of view of 600 mm in width and 400 mm in depth is marked on the base frame. The shipping cases can have a height of up to 380 mm. The detected serial numbers are marked in green so that they are easy for the operators to understand. Depending on the configuration, the system can compare the recorded serial numbers with the default values of the L3 installation. Particular attention was paid to user guidance (workflow) in order to achieve maximum process reliability. In order to completely fill the carton layer(s) or spaces, barcodes that cannot be placed with the barcode facing upwards due to their orientation can be manually added in each layer by the integrated handheld scanner to complete the respective layer or carton.
